High Voltage DC Power Supply 5kV,
0V - 5kV.
The 5kV power supply is used in the laboratory
for electrostatic applications. It is supplied
by a 5V power supply unit. The voltage can be
adjusted by means of two potentiometers.
The display shows the true value at the output,
so that the displayed voltage matches the v
oltage at the object.

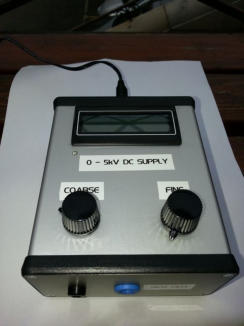

Fig. far left: High Voltage Power Supply
ready to use.

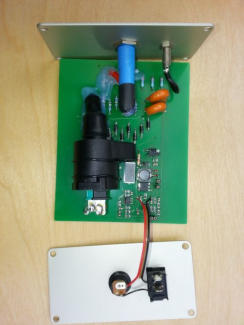

Fig. left: 5kV generator inside view.
DESIGN AND DEVELOPMENT
OF ELECTRONIC CIRCUITS
Power Supplies
High Voltage DC Power Supply 5kV.
